CADfix STL - STL Creation Solutions
CADfix STL empowers users to generate high-quality, watertight, STL files with precise control over STL file creation, ensuring optimal triangle density and quality, and a mesh a suitable for their downstream needs.
Transform your CAD workflows with CADfix’s comprehensive tools for STL file creation, processing, repair, and reverse engineering to BREP CAD geometry.
STL Creation

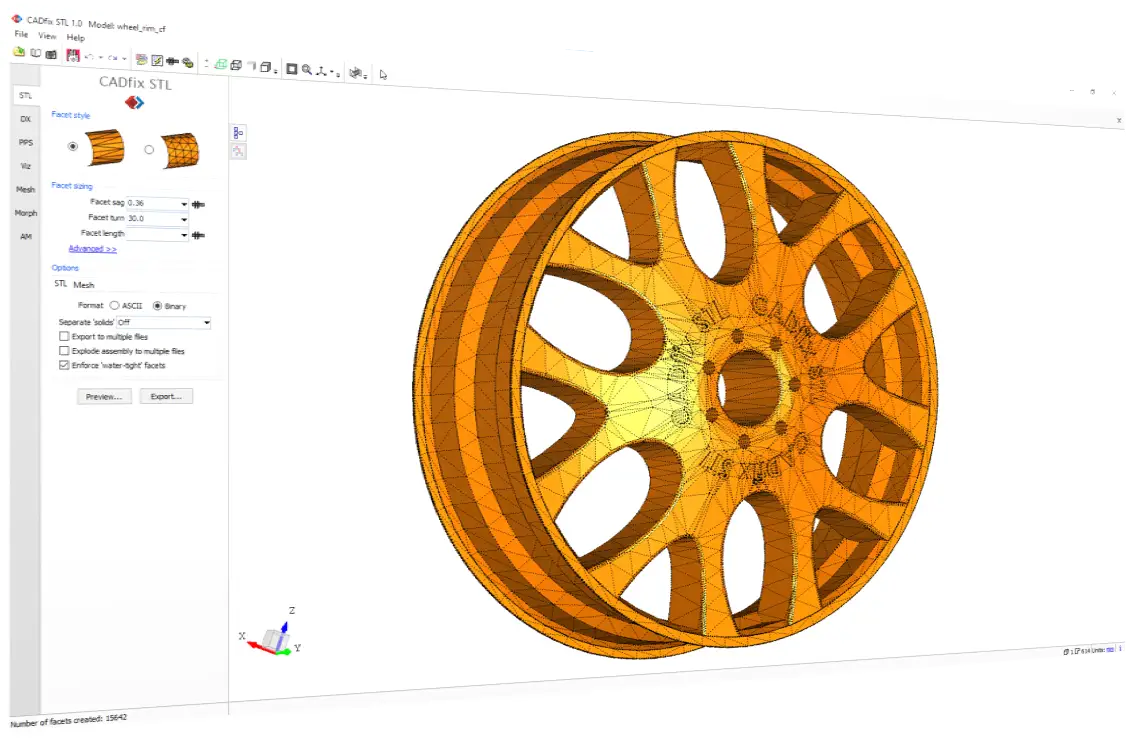

Transform your CAD workflows with CADfix STL’s comprehensive tools for STL file creation. CADfix empowers users with precise control over STL file creation, ensuring optimal triangle density and quality. Choose from "Minimal" STL for lightweight models ideal for visualization and DMU applications, or "Quality" STL for detailed analysis-style meshes.
- Generate high-quality watertight facets, from STEP or IGES CAD models.
- Configurable tessellation parameters.
- Close control over facet sizing parameters.
- Multiple export options to produce separate files for each body or based on color, layer, or label.
- Export to STL, Neutral ASCII mesh file, NASTRAN, and ABAQUS file formats.
Free CADfix STL Software
CADfix STL is a free desktop application. As a free product, CADfix STL is offered with no end-user support. However, we value the feedback of our users and would encourage you to submit any issues, feedback, and feature requests.
CADfix STL is the latest addition to the product CADfix family which is founded on ITI’s extensive geometry handling expertise and aimed at solving complex CAD interoperability problems. For CAD models that require repair, defeaturing, simplification, or other advanced geometry processing as part of the PLM workflow, users can upgrade to the CADfix Data Exchange, CADfix PPS, or CADfix Viz solutions.
